RadioMaster TX16S MK3 MAX — ELRS in hand

Full-size EdgeTX with internal ExpressLRS Gemini-X

RadioMaster TX16S MK3 MAX — ELRS in hand

TX16S MK3 MAX

Full-size EdgeTX with internal ExpressLRS Gemini-X

TX16S MAX detail

AG02 CNC gimbals · 5″ touch · dual-band RF

We already own a TX16S MK3 MAX. That stays our transmitter: EdgeTX (≥ 3.0) + internal ExpressLRS Gemini-X (2× LR1121, 2.4 GHz + Sub-G 900 MHz). No external ELRS module needed. RC to the aircraft goes via XR4 on CRSF.

Why this radio

  • Matches XR4 Gemini-X one-to-one (dual-band).
  • Premium gimbals; full-size for missions and telemetry (Yaapu).
  • Flash the internal ELRS module: web flasher → Hardware RadioMaster TX16S MK3 → EdgeTX Passthrough.

Store: RadioMaster TX16S MK3 MAX. Manual: TX16S-MK3-manual-1.4.pdf. Bind: RadioMaster bind help.

What we do

  1. Set model Internal RF to CRSF (ELRS).
  2. Bind via bind phrase (recommended) or SYS → Tools → ExpressLRS Lua → Bind.
  3. Set Arm/CH5 correctly (ELRS dynamic power).
  4. With ELRS hybrid switches, put flight modes on CH12 (not CH8).
  5. On-screen telemetry: Yaapu + ArduPilot CRSF passthrough.
  6. On the FC: XR4 on TELEM2 — see ArduPilot + ELRS setup.

EU / NL: Sub-G (868/900) power is legally limited. 2.4 GHz is the primary long-range band unless you use Gemini RX plus a legal Sub-G setup.

Read next

ArduPilot wiki

Reviews: Oscar Liang — TX16S MK3 · YouTube review.

Choice log

What RadioMaster TX16S MK3 MAX (already owned)
Why Internal ELRS Gemini-X + EdgeTX; matches XR4
Our pick The MAX we already have — no external module; Standard/Pocket not needed

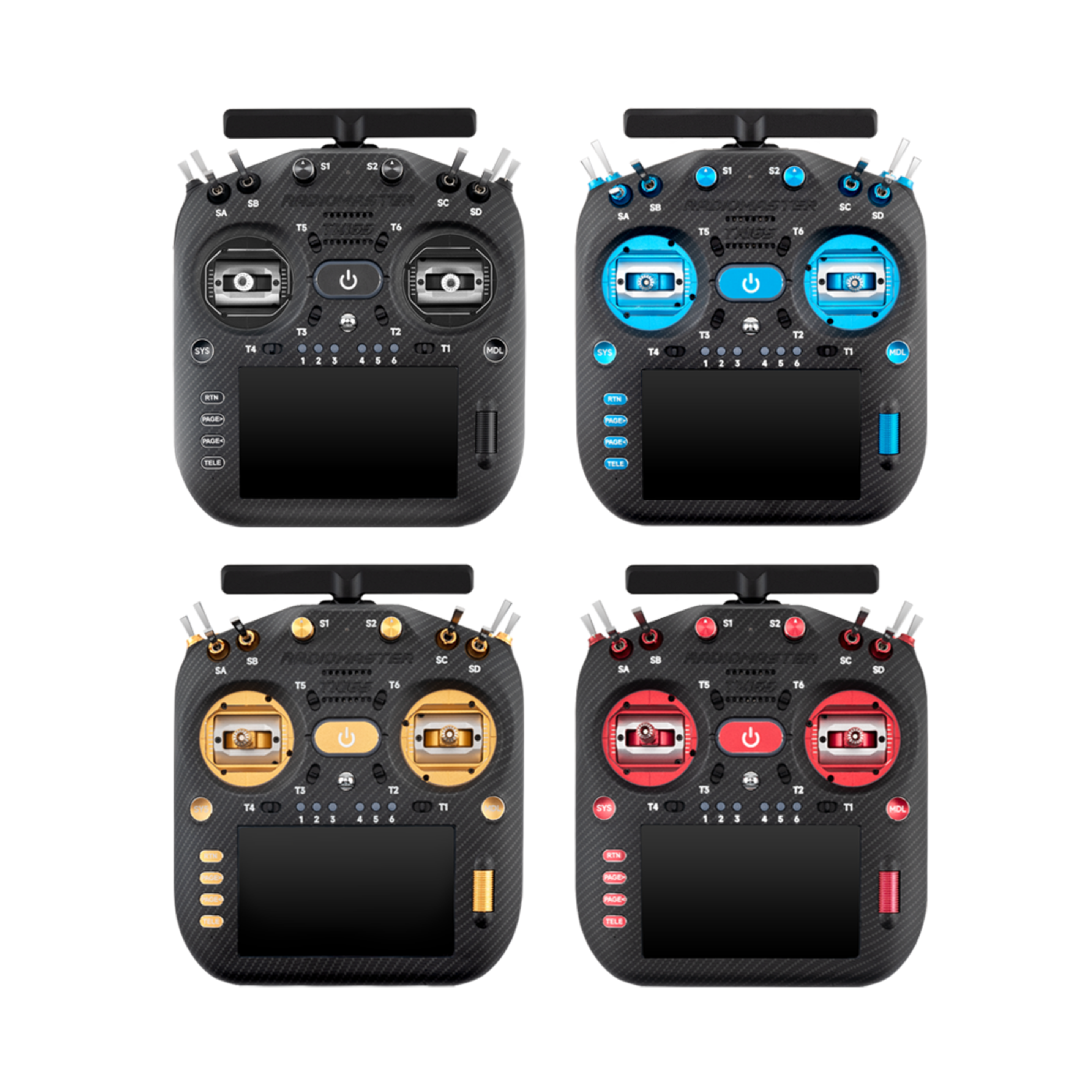

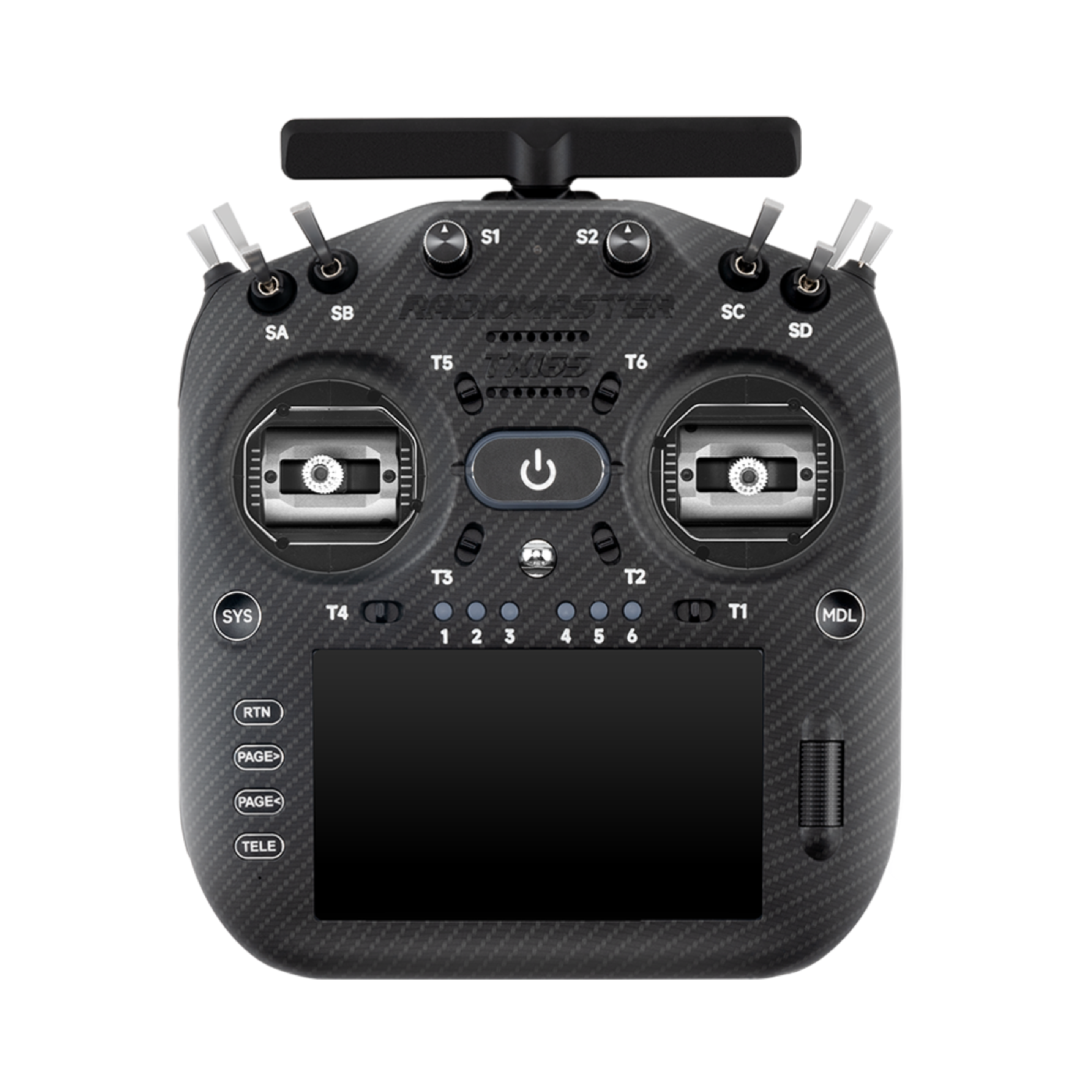

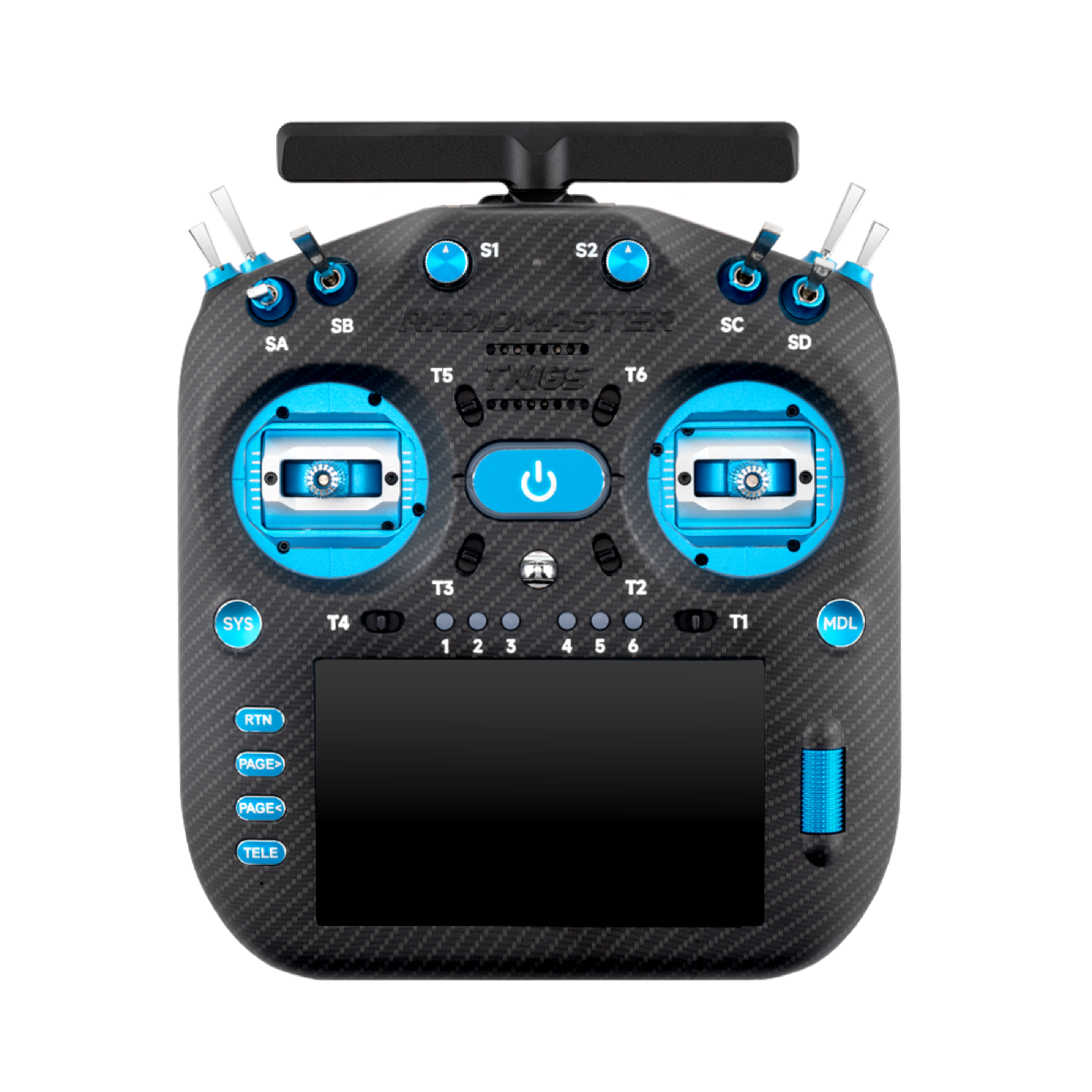

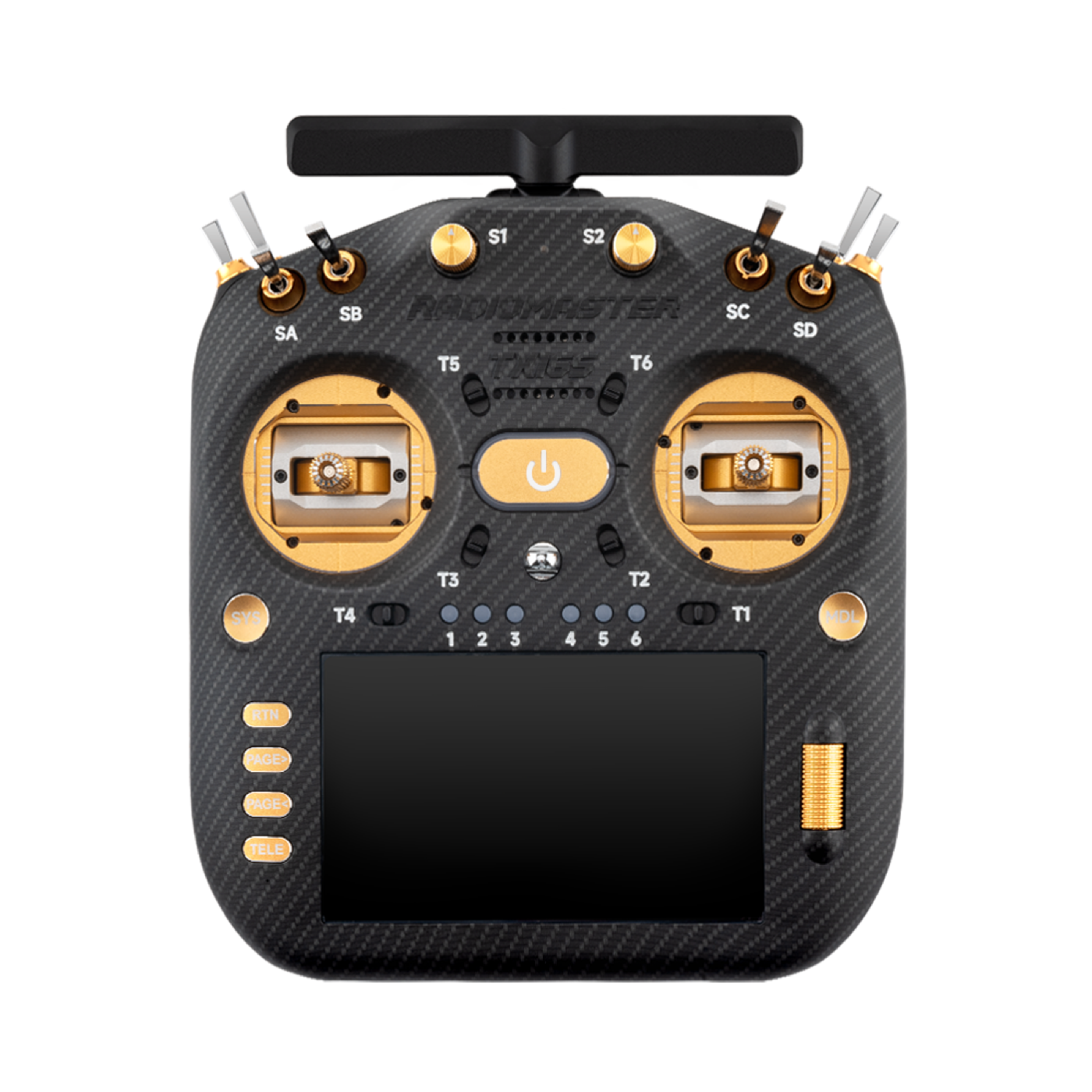

Photos
